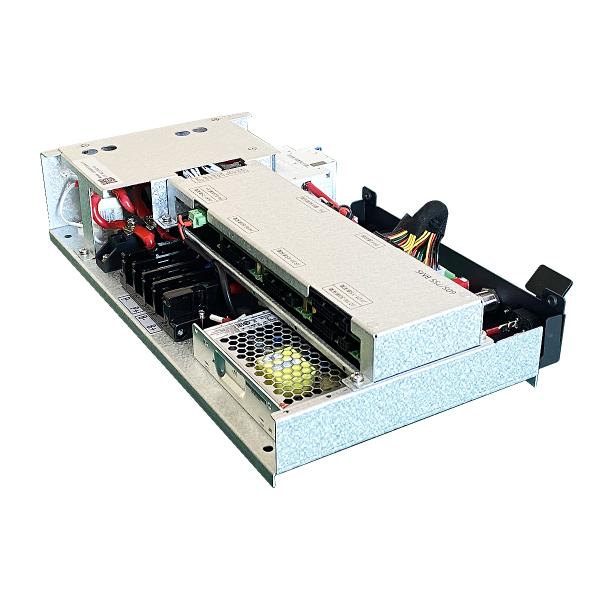

50A 240V Master Slave BMS for Lifepo4 Battery 30S-75S

Place of Origin : Hunan, China

Brand Name : GCE

Model Number : 60S

MOQ : 2

Price : $500-556

Current : 50A/100A

Voltage : 240V

Strings : 30s-75s

Communication : CAN, RS485

Size : 410*232*128mm

System voltage range : 120 - 228 V DC

Number of battery strings : 60 S（4 x 15 S）

Balance type : Passive resistance equalization

Balanced current : 100mA ± 10mA(Single cell 3.4V)

Temperature Sampling : 12 Battery temperature(4*3)

Sampling accuracy : ± 2℃

Voltage Sampling accuracy : Single cell ±20mV

SOC : ≤5%

Hall sensor specifications : 50A/100A

Maximum load : Steady-state：100A, transient state：150A/10S（Adjustable）

Contact Now

40S 50A Smart BMS for Lifepo4 battery pack 128V energy storage lithium battery management system mast and slave all in one

50A 240V Master Slave BMS for Lifepo4 Battery 30S-75S

40S 50Amp

Communication protocol:

CAN, RS485, Bluetooth, GPRS，Dry Contact

* Design: Master & Slave all in one

* Efficient, stable and reliable * size:W410*H232*D128cm

Unique Design

It is the latest product developed by our company and it's unique in the market.

For 30S-75S Lithium Battery Packs

Integrated BMS supports 30S-75S lithium battery packs.

For 30S-75S Lithium Battery Packs

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of
small capacity batteries. Greatly reduce the cost of users.

Specification

Product Name	Integrated BMS
Model no.	RBMS07S40S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S（4 x 15 S）
Balance	Equilibrium type	Passive resistance equalization
	Balanced current	100mA ± 10mA(Single cell 3.4V ）
Temperature Sampling	Numbers	12 Battery temperature(4*3)
	Sampling accuracy	± 2℃
Voltage Sampling	Sampling accuracy	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional,
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state：100A transient state：150A/10S（ Adjustable）
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

Product Feature

1.It is high integrated with less installation space. 2.Long life cycle, >3000 times at 80% DOD. 3.It without heavy metals and environment friendly. 4.Maintenance free,there is no memory effect. 5.Internal BMS with full protection,battery has high voltage protection with higher reliability.

6. Master and Slave all in one.

Application

Company Profile

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
